ThingBLEMeshCommand Class Reference

The Bluetooth mesh protocol for certain commands. More...

#import <ThingBLEMeshCommand.h>

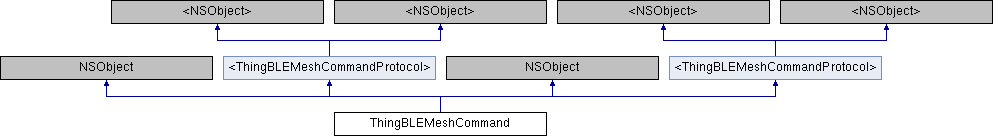

Inheritance diagram for ThingBLEMeshCommand:

Properties
ThingBLEMeshCommandType	commandType
	The command type. More...
NSString *	pcc
	In each product category code (PCC), a small category is followed by a major category. For example, the PCC of a cool white and colored light (RGBC) is 0401. In this case, 04 represents a cool white and colored light (RGBC) and 01 represents the major category of lights. More...
uint32_t	address
	The address of a device or a group. Valid values of a device address: 1 to 255. Valid values of a group address: 0x8001 and 0x8008. More...
BOOL	isGroup
	Specifies whether a group command is used. More...
NSArray< NSString * > *	dataParams
	For more information about the command data, see the documentation. More...
NSString *	logDescription
	The output of secondary log files. More...

Additional Inherited Members
Instance Methods inherited from <ThingBLEMeshCommandProtocol>
(NSData *)	- command
(NSString *)	- raw
(NSData *)	- command
(NSString *)	- raw

Detailed Description

The Bluetooth mesh protocol for certain commands.

Definition at line 24 of file ThingBLEMeshCommand.h.

Property Documentation

address

- (uint32_t) address

readwritenonatomicassign

The address of a device or a group. Valid values of a device address: 1 to 255. Valid values of a group address: 0x8001 and 0x8008.

Definition at line 33 of file ThingBLEMeshCommand.h.

commandType

- (ThingBLEMeshCommandType) commandType

readwritenonatomicassign

The command type.

Definition at line 27 of file ThingBLEMeshCommand.h.

dataParams

- (NSArray< NSString * > *) dataParams

readwritenonatomicstrong

For more information about the command data, see the documentation.

Definition at line 39 of file ThingBLEMeshCommand.h.

isGroup

- (BOOL) isGroup

readwritenonatomicassign

Specifies whether a group command is used.

Definition at line 36 of file ThingBLEMeshCommand.h.

logDescription

- (NSString *) logDescription

readwritenonatomicstrong

The output of secondary log files.

Definition at line 42 of file ThingBLEMeshCommand.h.

pcc

- (NSString *) pcc

readwritenonatomicstrong

In each product category code (PCC), a small category is followed by a major category. For example, the PCC of a cool white and colored light (RGBC) is 0401. In this case, 04 represents a cool white and colored light (RGBC) and 01 represents the major category of lights.

Definition at line 30 of file ThingBLEMeshCommand.h.

---

The documentation for this class was generated from the following files:

• /Users/humtong/Downloads/Pods_副本/ThingSmartBLEMeshKit/Build/ThingSmartBLEMeshKit.xcframework/ios-arm64_x86_64-simulator/ThingSmartBLEMeshKit.framework/Headers/ThingBLEMeshCommand.h
• /Users/humtong/Downloads/Pods_副本/ThingSmartBLEMeshKit/Build/ThingSmartBLEMeshKit.xcframework/ios-arm64/ThingSmartBLEMeshKit.framework/Headers/ThingBLEMeshCommand.h
