#import <ThingGroupServiceProtocol.h>

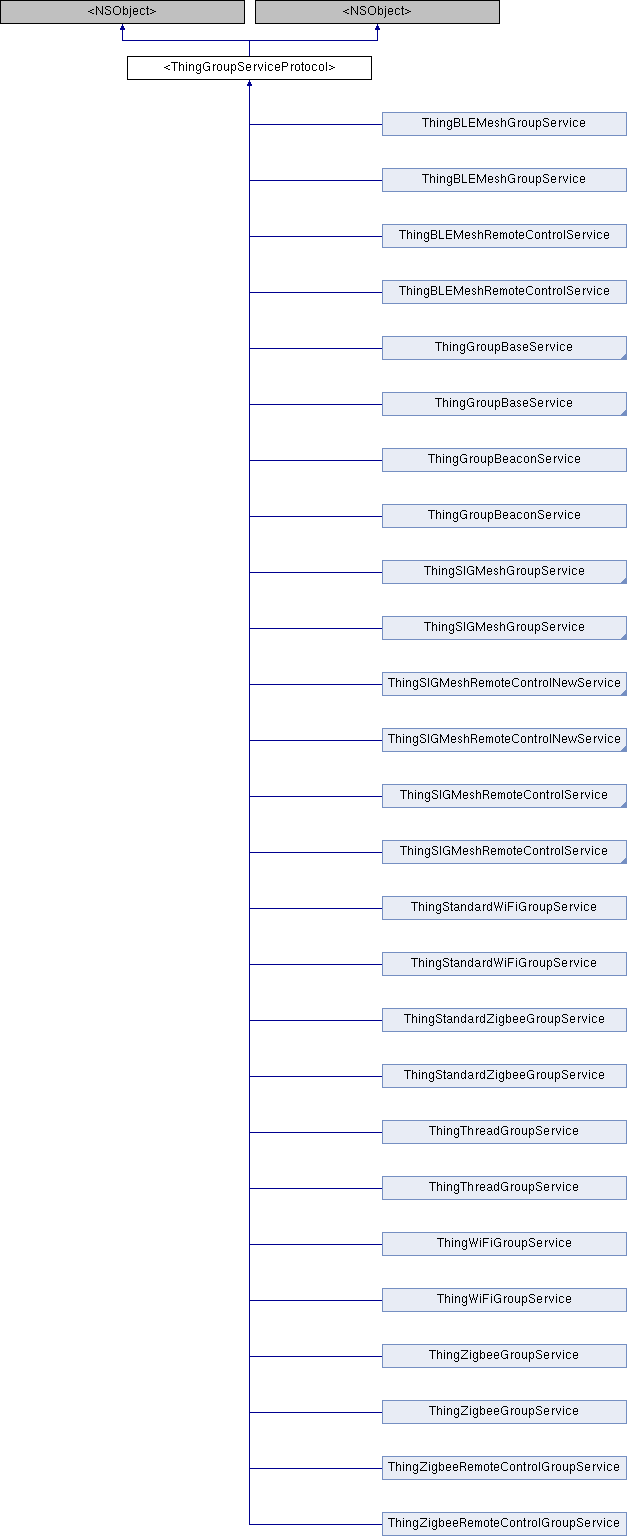

Inheritance diagram for <ThingGroupServiceProtocol>:

Instance Methods
(instancetype)	- initWithDevId:

(instancetype)	- initWithGroupId:

(void)	- setCurrentSpaceDeviceList:
	设置当前家庭的设备列表适用于私有Mesh群组、普通SIGMesh群组、Beacon群组 More...

(instancetype)	- initWithDevId:localId:categoryCode:codes:

(instancetype)	- initWithDevId:localId:pccs:

(instancetype)	- initWithDevId:localId:categoryCode:filterType:pccs:codes:

(void)	- fetchDeviceListWithSuccess:failure:

(void)	- createGroupWithName:deviceList:process:success:failure:

(void)	- updateGroupWithDeviceList:process:success:failure:

(void)	- removeGroupWithGroupId:success:failure:

(instancetype)	- initWithDevId:

(instancetype)	- initWithGroupId:

(void)	- setCurrentSpaceDeviceList:
	设置当前家庭的设备列表适用于私有Mesh群组、普通SIGMesh群组、Beacon群组 More...

(instancetype)	- initWithDevId:localId:categoryCode:codes:

(instancetype)	- initWithDevId:localId:pccs:

(instancetype)	- initWithDevId:localId:categoryCode:filterType:pccs:codes:

(void)	- fetchDeviceListWithSuccess:failure:

(void)	- createGroupWithName:deviceList:process:success:failure:

(void)	- updateGroupWithDeviceList:process:success:failure:

(void)	- removeGroupWithGroupId:success:failure:

Detailed Description

Definition at line 15 of file ThingGroupServiceProtocol.h.

Method Documentation

◆ createGroupWithName:deviceList:process:success:failure: [1/2]

- (void) createGroupWithName:	(NSString *)	name
deviceList:	(NSArray< NSString * > *)	deviceList
process:	(ThingGroupProcess)	process
success:	(ThingGroupSuccess)	result
failure:	(ThingGroupResultFailure)	failure

optional

创建群组–将设备加入群组遥控器群组不需要此步骤

Parameters

name	群组名字
deviceList	待添加设备列表
process	进度信息 {"total":5,"current":1}
result	成功回调 {"groupId":"xxx"}
failure	失败回调 {"groupId":"xxxx","failureList":[{"devId":"xxx","errorCode":1},{"devId":"xxx","errorCode":1}],"error":{"errorCode":1,"errorMsg":"xxx"}} 优先解析error信息，error不存在时解析failureList，failureList为失败设备列表

◆ createGroupWithName:deviceList:process:success:failure: [2/2]

- (void) createGroupWithName:	(NSString *)	name
deviceList:	(NSArray< NSString * > *)	deviceList
process:	(ThingGroupProcess)	process
success:	(ThingGroupSuccess)	result
failure:	(ThingGroupResultFailure)	failure

optional

创建群组–将设备加入群组遥控器群组不需要此步骤

Parameters

name	群组名字
deviceList	待添加设备列表
process	进度信息 {"total":5,"current":1}
result	成功回调 {"groupId":"xxx"}
failure	失败回调 {"groupId":"xxxx","failureList":[{"devId":"xxx","errorCode":1},{"devId":"xxx","errorCode":1}],"error":{"errorCode":1,"errorMsg":"xxx"}} 优先解析error信息，error不存在时解析failureList，failureList为失败设备列表

◆ fetchDeviceListWithSuccess:failure: [1/2]

- (void) fetchDeviceListWithSuccess:	(ThingGroupDevListResult)	result
failure:	(void(^)(NSError *error))	failure

optional

获取群组下符合条件的设备列表

Parameters

result	设备列表
failure	failure

◆ fetchDeviceListWithSuccess:failure: [2/2]

- (void) fetchDeviceListWithSuccess:	(ThingGroupDevListResult)	result
failure:	(void(^)(NSError *error))	failure

optional

获取群组下符合条件的设备列表

Parameters

result	设备列表
failure	failure

◆ initWithDevId: [1/2]

- (instancetype) initWithDevId: (NSString *) devId

optional

根据devId初始化群组实例–创建群组

Parameters

devId devId

◆ initWithDevId: [2/2]

- (instancetype) initWithDevId: (NSString *) devId

optional

根据devId初始化群组实例–创建群组

Parameters

devId devId

◆ initWithDevId:localId:categoryCode:codes: [1/2]

- (instancetype) initWithDevId:	(NSString *)	devId
localId:	(NSString *)	localId
categoryCode:	(NSString *)	categoryCode
codes:	(NSArray *)	codes

optional

初始化Zigbee遥控器实例

Parameters

devId	遥控器devId
localId	localId
categoryCode	categoryCode非三级品类编码，云端用于判断处理遥控器群组 zigbee遥控器有单分组和8分组的区别，单分组为8001，8分组为3001-3008
codes	二级品类code

◆ initWithDevId:localId:categoryCode:codes: [2/2]

- (instancetype) initWithDevId:	(NSString *)	devId
localId:	(NSString *)	localId
categoryCode:	(NSString *)	categoryCode
codes:	(NSArray *)	codes

optional

初始化Zigbee遥控器实例

Parameters

devId	遥控器devId
localId	localId
categoryCode	categoryCode非三级品类编码，云端用于判断处理遥控器群组 zigbee遥控器有单分组和8分组的区别，单分组为8001，8分组为3001-3008
codes	二级品类code

◆ initWithDevId:localId:categoryCode:filterType:pccs:codes: [1/2]

- (instancetype) initWithDevId:	(NSString *)	devId
localId:	(NSString *)	localId
categoryCode:	(nullable NSString *)	categoryCode
filterType:	(nullable NSString *)	filterType
pccs:	(NSArray *)	pccs
codes:	(nullable NSArray *)	codes

optional

初始化遥控器实例— 新版本 SIGMesh遥控器

Parameters

devId	遥控器devId
localId	localId
categoryCode	并非三级品类，与localId匹配范围为7001-7008；localId 为云端分配，步长为8，因此一个遥控器内部最多支持关联8个群组，localid为初始值依次+1，与之匹配的categoryCode从7001依次+1.
filterType	类型，0:pccs 、1:codes，旧面板无此字段，作为新旧面板区分标志，旧面板走之前本地逻辑，新面板走云端
pccs	mesh category
codes	二级品类code

◆ initWithDevId:localId:categoryCode:filterType:pccs:codes: [2/2]

- (instancetype) initWithDevId:	(NSString *)	devId
localId:	(NSString *)	localId
categoryCode:	(nullable NSString *)	categoryCode
filterType:	(nullable NSString *)	filterType
pccs:	(NSArray *)	pccs
codes:	(nullable NSArray *)	codes

optional

初始化遥控器实例— 新版本 SIGMesh遥控器

Parameters

devId	遥控器devId
localId	localId
categoryCode	并非三级品类，与localId匹配范围为7001-7008；localId 为云端分配，步长为8，因此一个遥控器内部最多支持关联8个群组，localid为初始值依次+1，与之匹配的categoryCode从7001依次+1.
filterType	类型，0:pccs 、1:codes，旧面板无此字段，作为新旧面板区分标志，旧面板走之前本地逻辑，新面板走云端
pccs	mesh category
codes	二级品类code

◆ initWithDevId:localId:pccs: [1/2]

- (instancetype) initWithDevId:	(NSString *)	devId
localId:	(NSString *)	localId
pccs:	(NSArray *)	pccs

optional

初始化遥控器实例– 旧版本 SIGMesh遥控器

Parameters

devId	遥控器devId
localId	localId
pccs	pcc过滤条件

◆ initWithDevId:localId:pccs: [2/2]

- (instancetype) initWithDevId:	(NSString *)	devId
localId:	(NSString *)	localId
pccs:	(NSArray *)	pccs

optional

初始化遥控器实例– 旧版本 SIGMesh遥控器

Parameters

devId	遥控器devId
localId	localId
pccs	pcc过滤条件

◆ initWithGroupId: [1/2]

- (instancetype) initWithGroupId: (NSString *) groupId

optional

根据groupId初始化群组实例–编辑群组

Parameters

groupId groupId

◆ initWithGroupId: [2/2]

- (instancetype) initWithGroupId: (NSString *) groupId

optional

根据groupId初始化群组实例–编辑群组

Parameters

groupId groupId

◆ removeGroupWithGroupId:success:failure: [1/2]

- (void) removeGroupWithGroupId:	(NSString *)	groupId
success:	(void(^)(void))	success
failure:	(void(^)(NSError *error))	failure

optional

删除群组（支持正常群组和分享的群组移除） — 遥控器群组不支持

Parameters

groupId	群组id
success	成功回调
failure	失败回调

◆ removeGroupWithGroupId:success:failure: [2/2]

- (void) removeGroupWithGroupId:	(NSString *)	groupId
success:	(void(^)(void))	success
failure:	(void(^)(NSError *error))	failure

optional

删除群组（支持正常群组和分享的群组移除） — 遥控器群组不支持

Parameters

groupId	群组id
success	成功回调
failure	失败回调

◆ setCurrentSpaceDeviceList: [1/2]

- (void) setCurrentSpaceDeviceList: (NSArray< ThingSmartDeviceModel * > *) deviceList

optional

设置当前家庭的设备列表适用于私有Mesh群组、普通SIGMesh群组、Beacon群组

◆ setCurrentSpaceDeviceList: [2/2]

- (void) setCurrentSpaceDeviceList: (NSArray< ThingSmartDeviceModel * > *) deviceList

optional

设置当前家庭的设备列表适用于私有Mesh群组、普通SIGMesh群组、Beacon群组

◆ updateGroupWithDeviceList:process:success:failure: [1/2]

- (void) updateGroupWithDeviceList:	(NSArray< NSString * > *)	deviceList
process:	(ThingGroupProcess)	process
success:	(ThingGroupSuccess)	result
failure:	(ThingGroupResultFailure)	failure

optional

更新群组

Parameters

deviceList	选中的设备列表
process	进度信息 {"total":5,"current":1}
result	成功回调 {"groupId":"xxx"}
failure	失败回调 {"groupId":"xxxx","failureList":[{"devId":"xxx","errorCode":1},{"devId":"xxx","errorCode":1}],"error":{"errorCode":1,"errorMsg":"xxx"}} 优先解析error信息，error不存在时解析failureList，failureList为失败设备列表

◆ updateGroupWithDeviceList:process:success:failure: [2/2]

- (void) updateGroupWithDeviceList:	(NSArray< NSString * > *)	deviceList
process:	(ThingGroupProcess)	process
success:	(ThingGroupSuccess)	result
failure:	(ThingGroupResultFailure)	failure

optional

更新群组

Parameters

deviceList	选中的设备列表
process	进度信息 {"total":5,"current":1}
result	成功回调 {"groupId":"xxx"}
failure	失败回调 {"groupId":"xxxx","failureList":[{"devId":"xxx","errorCode":1},{"devId":"xxx","errorCode":1}],"error":{"errorCode":1,"errorMsg":"xxx"}} 优先解析error信息，error不存在时解析failureList，failureList为失败设备列表

The documentation for this protocol was generated from the following files:

/Users/humtong/Downloads/Pods_副本/ThingGroupManagerKit/ThingGroupManagerKit.xcframework/ios-arm64_x86_64-simulator/ThingGroupManagerKit.framework/Headers/ThingGroupServiceProtocol.h
/Users/humtong/Downloads/Pods_副本/ThingGroupManagerKit/ThingGroupManagerKit.xcframework/ios-arm64/ThingGroupManagerKit.framework/Headers/ThingGroupServiceProtocol.h
