<ThingSmartActivatorMatterProtocol> Protocol Reference

#import <ThingSmartActivatorMatterProtocol.h>

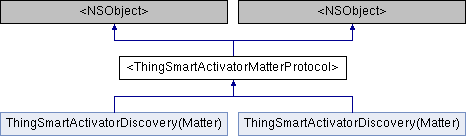

Inheritance diagram for <ThingSmartActivatorMatterProtocol>:

Instance Methods
(ThingSmartActivatorDeviceModel *)	- parseSetupCode:
(void)	- continueCommissioningDevice:ignoreAttestationFailure:error:
(void)	- continueCommissionDevice:typeModel:
(void)	- startScanAvailableWIFI
	scan device acvailable wifi list. More...
(ThingSmartActivatorDeviceModel *)	- parseSetupCode:
(void)	- continueCommissioningDevice:ignoreAttestationFailure:error:
(void)	- continueCommissionDevice:typeModel:
(void)	- startScanAvailableWIFI
	scan device acvailable wifi list. More...

Class Methods
(void)	+ setMatterConfigKey:
(void)	+ setMatterConfigKey:

Detailed Description

Definition at line 12 of file ThingSmartActivatorMatterProtocol.h.

Method Documentation

continueCommissionDevice:typeModel: [1/2]

- (void) continueCommissionDevice:		(ThingSmartActivatorDeviceModel *)	deviceModel
typeModel:		(ThingSmartActivatorTypeMatterModel *)	typeModel

Continue pair WIFI or Thread matter device when session establishment completed.

Notice: There are some rules before use this api to continue pair the matter device.

1. Can only be used after the - matterCommissioningSessionEstablishmentComplete:
2. The routingType must be equal to ThingMatterRoutingTypeThing. (routingType can be known by -matterRoutingComplete:)
3. If you are pairing thread device ␈and want to set gateway device, you can set gwid in ThingSmartActivatorTypeMatterModel and use this api after the - matterCommissioningSessionEstablishmentComplete:

Parameters

deviceModel	the matter devicemodel.
typeModel	Network configuration type.

continueCommissionDevice:typeModel: [2/2]

- (void) continueCommissionDevice:		(ThingSmartActivatorDeviceModel *)	deviceModel
typeModel:		(ThingSmartActivatorTypeMatterModel *)	typeModel

Continue pair WIFI or Thread matter device when session establishment completed.

Notice: There are some rules before use this api to continue pair the matter device.

1. Can only be used after the - matterCommissioningSessionEstablishmentComplete:
2. The routingType must be equal to ThingMatterRoutingTypeThing. (routingType can be known by -matterRoutingComplete:)
3. If you are pairing thread device ␈and want to set gateway device, you can set gwid in ThingSmartActivatorTypeMatterModel and use this api after the - matterCommissioningSessionEstablishmentComplete:

Parameters

deviceModel	the matter devicemodel.
typeModel	Network configuration type.

continueCommissioningDevice:ignoreAttestationFailure:error: [1/2]

- (void) continueCommissioningDevice:		(void *)	device
ignoreAttestationFailure:		(BOOL)	ignoreAttestationFailure
error:		(NSError *__autoreleasing *)	error

Continue the pairing or NOT.

Notice: Can only be used after the -matterDeviceAttestation:error: delegate callback.

Parameters

device	It MUST BE the device object through the -matterDeviceAttestation:error: delegate callback.
ignoreAttestationFailure	Ignore the attestation fail or NOT. YES - continue pairing, NO - interrupt pairing.
error	the error info.

continueCommissioningDevice:ignoreAttestationFailure:error: [2/2]

- (void) continueCommissioningDevice:		(void *)	device
ignoreAttestationFailure:		(BOOL)	ignoreAttestationFailure
error:		(NSError *__autoreleasing *)	error

Continue the pairing or NOT.

Notice: Can only be used after the -matterDeviceAttestation:error: delegate callback.

Parameters

device	It MUST BE the device object through the -matterDeviceAttestation:error: delegate callback.
ignoreAttestationFailure	Ignore the attestation fail or NOT. YES - continue pairing, NO - interrupt pairing.
error	the error info.

parseSetupCode: [1/2]

- (ThingSmartActivatorDeviceModel *) parseSetupCode:

(NSString *)

qrString

Check the matter code is legal or not. Returns nil if it is invalid.

Parameters

qrString

The matter QRCode string or Manual Code string.

parseSetupCode: [2/2]

- (ThingSmartActivatorDeviceModel *) parseSetupCode:

(NSString *)

qrString

Check the matter code is legal or not. Returns nil if it is invalid.

Parameters

qrString

The matter QRCode string or Manual Code string.

setMatterConfigKey: [1/2]

+ (void) setMatterConfigKey:

(NSString *)

configKey

Set your App Groups identify to share data with Matter Extension

Notice

1. Please check the configKey must be same as the App Groups identify which is both chose it to Matter Extension Target and your App Main Target.
2. Please call this API before start pairing, Usually this api is called after the App is started and before the matter device activator starts.

• Parameter configKey: The App Groups identify.

setMatterConfigKey: [2/2]

+ (void) setMatterConfigKey:

(NSString *)

configKey

Set your App Groups identify to share data with Matter Extension

Notice

1. Please check the configKey must be same as the App Groups identify which is both chose it to Matter Extension Target and your App Main Target.
2. Please call this API before start pairing, Usually this api is called after the App is started and before the matter device activator starts.

• Parameter configKey: The App Groups identify.

startScanAvailableWIFI [1/2]

- (void) startScanAvailableWIFI

scan device acvailable wifi list.

startScanAvailableWIFI [2/2]

- (void) startScanAvailableWIFI

scan device acvailable wifi list.

---
